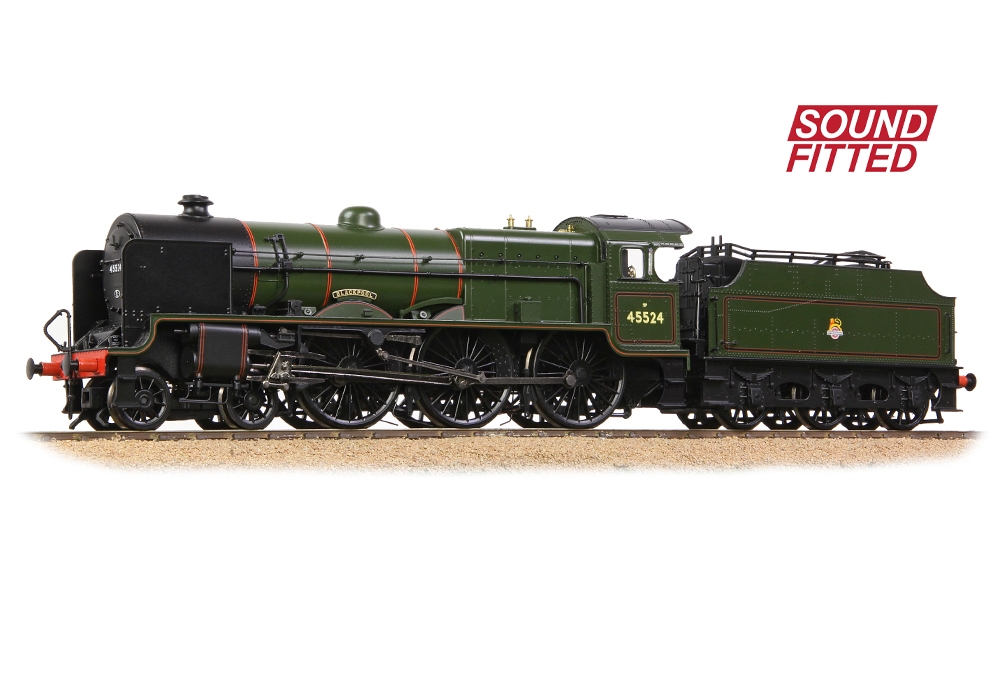

Bachmann Branchline 31-214SF LMS 5XP ‘Patriot’ 45524 ‘Blackpool’ BR Lined Green Early Emblem Dcc Sound (OO Gauge)

Add some LMS express power to your locomotive line up with the Bachmann Branchline LMS Patriot. The LMS built 52 of these locomotives for express passenger duties and named more than a dozen after the holiday resorts that it served. We’ve selected one of the most famous destinations of them all – Blackpool – as the subject for this Branchline OO scale model.

Boasting a high level of detail, the Branchline Patriot is constructed with a diecast metal running plate paired with a precision moulded boiler, firebox and cab capturing the loco’s distinctive appearance, most notably the parallel boiler and Fowler-designed cab. Etched metal smoke deflectors are then added, along with countless separate detailing parts like the metal handrails, turned brass safety valves, lamp irons and lubricators.

The locomotive’s diecast chassis is enhanced with brake blocks, brake rigging and sandboxes with separate wire sandpipes. Moving to the tender and the locomotive to tender drawbar is adjustable to suit individual layout conditions, whilst electrical connections are incorporated into the drawbar and a poseable fallplate is fitted to the tender, which itself is another precision moulded part, with several separately applied details including the lamp irons, tank vents, coal rails and handwheels. A realistic coal load is included whilst the tender chassis sports brake rigging and water pick-up gear. Sprung metal buffers are fitted to both the front of the locomotive and the rear of the tender.

Within the cab, a detailed boiler backhead is present and the pipework and controls are enhanced with individual decoration. The ventilator on the cab roof is a separate part, allowing it to be posed in the open or closed position, or somewhere in between. The high level of decoration is not reserved only for the cab interior of course, and the model boasts an authentic rendition of the BR Lined Green livery complete with full-colour early emblems. The beautifully crafted livery application is finished with precision printed details like the running number, shed code and builders plaques, whilst etched nameplates are supplied for user-fitting to complete the look of this express locomotive.

With a powerful three pole motor and a proven drive train, the Branchline Patriot is a surefooted machine that boasts electrical pickups from the driving wheels and tender wheels. Meanwhile, with SOUND FITTED this model is ready to run on analogue and DCC systems and will provide a range of authentic sound effects to bring another level of realism to your model railway.

MODEL FEATURES:

• Bachmann Branchline OO Scale
• Era 4
• Pristine BR Lined Green Early Emblem livery
• Running No. 45524
• Named ‘Blackpool’
• Etched Nameplates included
• Riveted Fowler Tender
• Powerful 3 Pole Motor
• Tender Pick-ups
• Adjustable Tender Drawbar
• NEM Coupling Pockets
• Sprung Buffers
• Accessory Pack
• Speaker Fitted
• SOUND FITTED – Fitted with a Zimo MX644C 21 Pin DCC Sound Decoder
• Length 260mm (over couplings)

LMS PATRIOT CLASS HISTORY

The London, Midland & Scottish Railway (LMS) employed a wide variety of 4-6-0 steam locomotive designs to haul its trains and the ‘Patriot’ was born from the success of the ‘Claughton’ Class of 4-6-0s that the LMS had inherited from the London & North Western Railway (LNWR). The first two of the 52-strong fleet of Patriots were created in 1930 by notionally rebuilding two LNWR Claughtons; the new locomotives retained the original driving wheels and bogie trucks along with some other parts and for four years they kept the Claughton numbers before being renumbered in 1934.

The other 50 locomotives were essentially built from new, albeit for accounting purposes 40 were classified as rebuilds, and construction was shared between the LMS’s Crewe Works who made the majority, and Derby Works which completed just ten examples.

Commonly known as ‘Baby Scots’ owing to their similarities to the ‘Royal Scot’ locomotives albeit with a smaller boiler, the Patriots saw widespread operation across the principal routes of the LMS and later, BR’s Midland Region. The class gained its name in 1937 when No. 5500 was named ‘Patriot’ as a successor to the original LNWR Claughton remembrance locomotive of the same name. Other members of the class were given names of regiments or had military connections, whilst some were named after holiday destinations served by the LMS.

Whilst the Patriots were considered good performers from their introduction, between 1946 and 1949 eighteen were rebuilt with new tapered boilers, a new cab and new tenders, all to the design of William Stanier. A similar rebuilding programme had earlier been initiated for the Royal Scots to which the Patriots bore so many similarities. Those 34 locomotives that were not rebuilt survived into British Railways ownership, still employed on express passenger services although as the onset of dieselisation began, some were displaced to mixed traffic duties.

The entire fleet was still working at the start of 1960 however a pair succumbed later that year. Eight more were taken out of traffic in 1961, and the type had gone completely by the end of 1962. None of the Patriots, nor any of the rebuilds, survived to preservation, however The LMS Patriot Project commenced in 2008 with the aim to build a replica of No. 5551 and name it ‘The Unknown Warrior’ to create a new national memorial engine. Good progress is being made towards the completion of this new-build replica.
