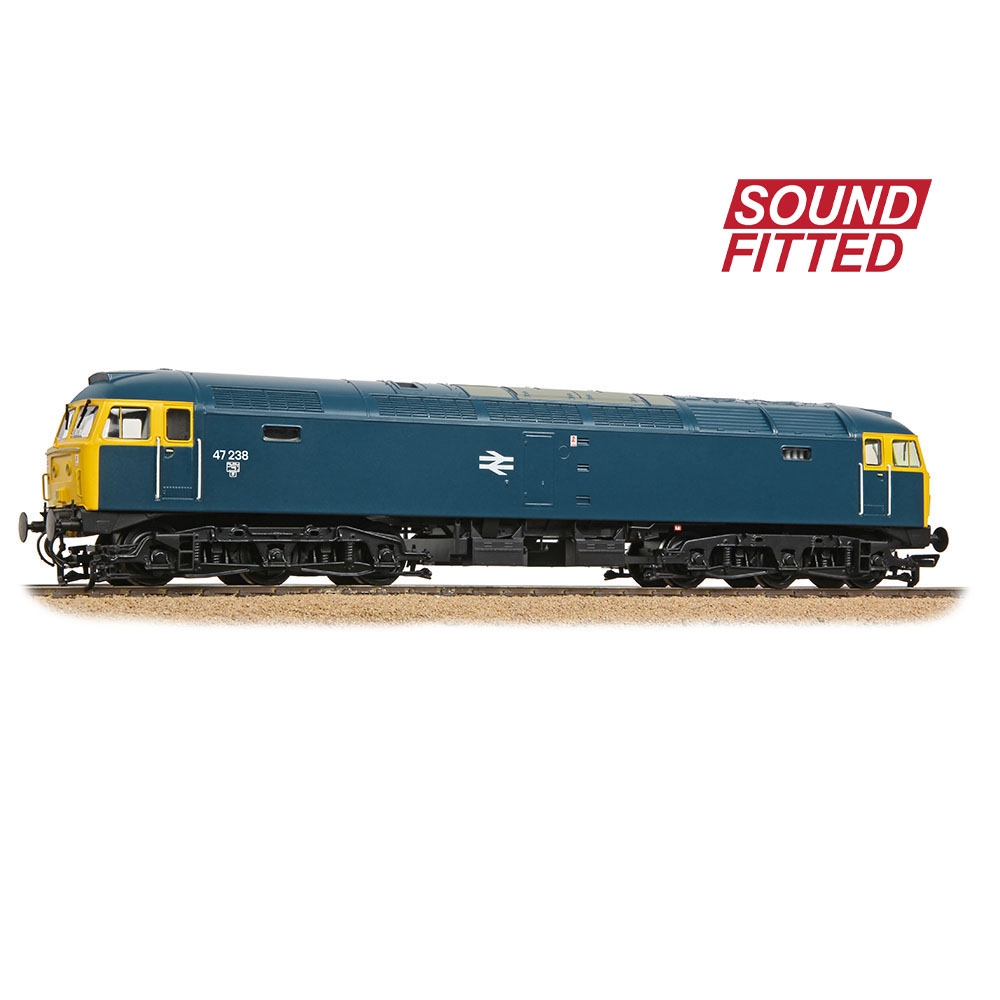

Bachmann Branchline 35-411BSF Class 47/0 47238 BR Blue Dcc Sound (OO Gauge) Free Postage

Bachmann’s award-winning Class 47 is back, and our brilliant Brush is better than ever following a brief spell in the works to add further enhancements to this stunning OO scale model.

After winning a public vote to be crowned Model of the Year 2021, the Bachmann Branchline Class 47 has a proven track record, and now we’ve taken things to the next level with an even higher technical specification alongside refinements to two key details.

Every Branchline Class 47 now comes with our Bach-Up Stay Alive System pre-installed, providing uninterrupted power when running on DCC to eliminate stalling, light flicker and sound cut-outs. Talking of sound and our SOUND FITTED and SOUND FITTED DELUXE models now boast the Dual Fitted XL speaker system, combining two speakers for optimum sound reproduction – including the new enhanced bass reproduction speaker, a patented component which incorporates a passive radiator design for sound effects like you’ve never experienced before.

Not only was the Class 47 crowned Model of the Year in 2021 but our SOUND FITTED DELUXE features – motorised radiator fans and tinted windscreen glazing – were voted the Innovation of the Year and the SOUND FITTED DELUXE specification just got better with the addition of our revolutionary Auto-Release Couplings, fitted at either end to provide hands-free DCC uncoupling at the press of a single function button.

To define the Class 47 look we’ve turned our attention to the cab windscreen glazing and made improvements to the fit and finish of this important area. Snowploughs were a significant feature of some Class 47s too, and we’ve totally redesigned this component which now attaches to the chassis of the locomotive, providing a fixed position for a realistic appearance even when running on curved track, and allowing the bufferbeam detail to be fitted at the same time.

These enhancements only add to the stunning model that is the Branchline Class 47, with its high fidelity mouldings, a wealth of fitted parts and countless tooling variations to capture the minutiae of the real locomotives throughout their lives – ensuring each model is faithful to its prototype.

• Bachmann Branchline OO Scale
• Era 8
• Pristine BR Blue livery
• Running No. 47238
• SOUND FITTED – Fitted with a ESU Loksound V5DCC Sound Decoder
• Length 255mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Plated Headcode Panels with Sealed Beam Marker Lights at No. 2 End
• Single Bufferbeam Bracket denoting a Brush-built Machine
• Single Arm Windscreen Wipers
• High Intensity Headlight
• Round Buffers
• Full Cab Roof Vents
• Serck Radiator Grilles
• Ribbed Exhaust Panels
• Blanked Roof Boiler Port
• Water Tanks Removed
• Plated Bogie-mounted Cab Steps
• Slow Speed Speedo Drive

BACHMANN BRANCHLINE CLASS 47 SPECIFICATION

MECHANISM:

• Five pole, twin shaft motor with two flywheels providing drive to both bogies
• All axle drive
• Electrical pickup from all wheels
• Separate metal bearings fitted to each axle
• Diecast metal chassis block and bogie towers
• Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities
• 16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
• Detachable coupling pockets to NEM362 standards fitted to each bogie
• Auto-Release Couplings fitted at both ends – DCC operated, hands-free uncoupling with the press of a function button (SOUND FITTED DELUXE models only)
• Designed to operate on curves of second radius (438mm) or greater

DETAILING:

• Precision moulded bodyshell and locomotive main frames, with numerous separately fitted parts including lamp irons, aerials and underframe components such as tanks, battery boxes and pipework
• Separately applied metal detail parts, including grab handles, cab-front footsteps windscreen wipers and etched fan grilles
• Bogies constructed from multiple components featuring full relief detail
• Sprung metal buffers
• Rotating radiator fans, driven by an independent motor and gearbox, operated via a DCC function, or randomised when operated as part of the sound project on DCC and Analogue control (SOUND FITTED DELUXE models only)
• Tinted windscreen glazing (SOUND FITTED DELUXE models only)
• Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts including body-mounted snow ploughs

LIGHTING:

• Directional lighting, including illuminated headcode panels and high intensity headlights where applicable, switchable on/off at either end on DCC or Analogue control
• Cab lighting*, assigned to two DCC functions for separate switching of each
• Separately switched Engine Room lighting* (*when used on DCC)
• Authentic light colours and temperatures selected for each model based on era and application

DCC:

• Plux22 DCC decoder interface
• Bach-Up Stay Alive System providing uninterrupted power to prevent stalling, light flicker and sound cut-outs (operates on DCC only)

SOUND:

• Speaker Fitted – a pre-fitted speaker is included with every model as standard
• Dual Fitted XL Speaker System – SOUND FITTED and SOUND FITTED DELUXE models feature two speakers, including our new speaker with enhanced bass reproduction – a patented component which incorporates a passive radiator design for optimum sound performance
• ESU Loksound V5DCC Sound Decoder pre-installed in SOUND FITTED and SOUND FITTED DELUXE versions
• Sound files produced specifically for the Bachmann Branchline Class 47 using recordings from real locomotives
• SOUND FITTED and SOUND FITTED DELUXE models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence, including the momentary dimming of all lights during engine start up, and running sounds are produced when power is applied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using BR specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing process, incorporating authentic typefaces, logos and colours
